Common Fire Tank Defects Found During Internal Inspections

A sprinkler tank can appear sound from the outside while deterioration progresses below the waterline, behind liners or within structural connections. The common fire tank defects found during internal inspections are rarely cosmetic concerns. They can affect stored water quality, usable capacity, structural integrity and, ultimately, the availability of water to a fire sprinkler system when it is needed.

For duty holders, facilities managers and insurers, an internal inspection provides the evidence needed to make proportionate decisions. It distinguishes a tank that needs planned refurbishment from one approaching a more serious failure point, often before leaks, loss of capacity or operational disruption become visible.

Why internal tank condition matters

Fire water storage tanks are static assets, but their condition is not static. Ageing coatings, changing water chemistry, sediment, repeated thermal movement and long-term moisture exposure all place pressure on materials and connections. A tank may remain in service for many years, yet still develop localised defects that would not be identified during an external visual check.

Internal inspections allow a competent surveyor to assess the areas that matter most: floor plates, side sheets, joints, bolts, stays, liner interfaces, roof supports and internal fittings. The inspection method should suit the tank and its operational constraints. In some cases, a drained-entry inspection is appropriate. In others, a no-drain ROV survey can provide valuable condition information without taking critical sprinkler water storage out of service.

The key is not simply finding a defect. It is understanding its cause, extent and consequence. Surface rust on an isolated component may require local treatment; widespread corrosion below a failed lining system could justify a more comprehensive refurbishment programme.

Common fire tank defects found during internal inspections

Corrosion to floor plates and lower side sheets

Corrosion is one of the most frequent findings, particularly in older galvanised steel tanks and tanks where coatings or liners have deteriorated. The floor and lower sections of side sheets are especially vulnerable because they remain constantly exposed to water, settled sediment and any corrosive deposits.

Internal corrosion may begin as discolouration, pitting or local breakdown of a protective surface. Left untreated, pitting can deepen and reduce the effective thickness of the steel. This creates a risk of perforation, leakage and contamination beneath a liner. A tank does not need to be visibly leaking for corrosion to warrant action.

The appropriate repair depends on the severity and distribution of the damage. Localised areas may be prepared and treated with a suitable epoxy coating system. Where corrosion is more extensive, an EPDM liner can provide a practical route to restoring water containment, provided the underlying structure remains suitable and any defective sections are repaired first.

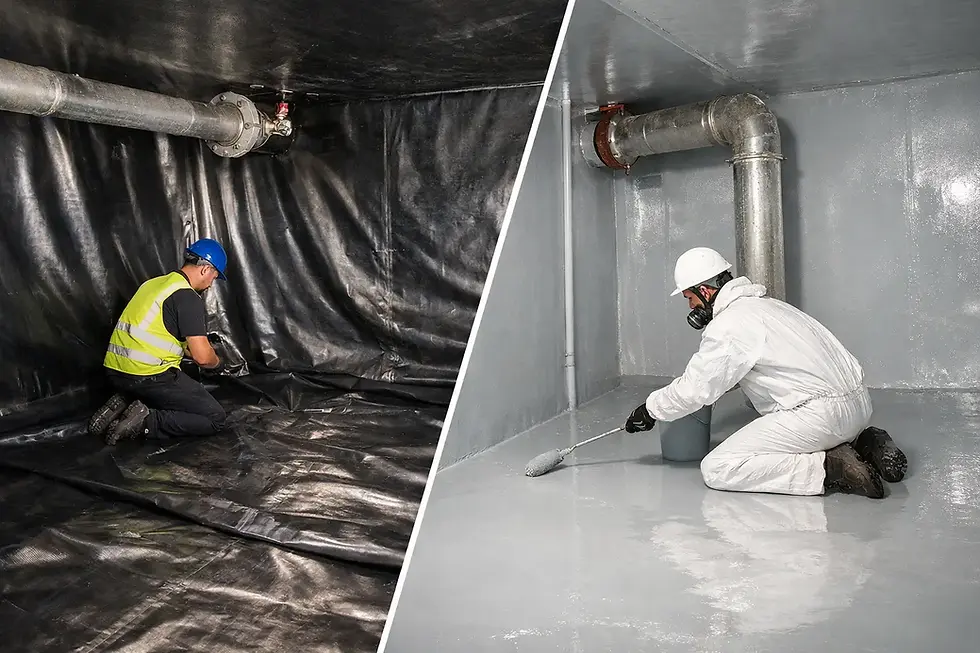

Failed, damaged or poorly detailed liners

An internal liner should provide a continuous barrier between the stored water and the tank structure. During inspections, common concerns include punctures, splits, loose sections, damaged seams, degraded corner details and failures around penetrations such as pipework connections.

Liner problems can result from age, mechanical damage, poor original installation or movement within the tank. A small tear may appear insignificant, but it can allow water to reach the steelwork behind it. Corrosion can then progress unseen until the defect becomes more difficult and expensive to resolve.

Particular attention should be given to the liner at the floor-to-wall junction, around suction and overflow arrangements, and at any location where internal components may rub or exert pressure. A targeted liner repair can be effective where damage is isolated. If the system has reached the end of its serviceable life, a complete relining solution may offer greater certainty and a longer-term outcome.

Sediment, debris and microbiological growth

Sediment is often underestimated because it is not always a direct structural defect. However, deposits on the tank floor can conceal corrosion, reduce water quality and interfere with the performance of components. They may also indicate that contaminants are entering through a compromised roof, vent, access hatch or overflow arrangement.

During an internal survey, the depth, spread and nature of sediment should be recorded. Fine deposits across a floor can prevent a proper assessment of the steel beneath. Local accumulations may point to poor circulation, deteriorating materials or ingress at a specific location.

Microbiological growth and staining should also be investigated rather than dismissed as an appearance issue. The response may include cleaning, removal of debris, repair of water ingress points and assessment of whether the existing liner or coating remains fit for purpose. The right remedy depends on the source of contamination and the tank's wider condition.

Leaking joints, failed seals and deteriorated bolts

Bolted sectional tanks rely on many individual joints working together. Internal inspections can reveal staining at seams, deteriorated washers, corrosion around bolts and evidence of previous leakage. These findings are particularly relevant where water has tracked into joint areas and begun to affect adjacent panels or reinforcement.

A minor seepage point is not always an emergency, but it should not be ignored. Leakage can worsen as materials continue to corrode or as the tank moves through seasonal temperature changes. It may also be an early sign that joint sealants, gaskets or bolt protection are no longer performing as intended.

Repairs can range from replacing defective fixings and seals to addressing corroded panels or installing an internal liner. The correct scope should be based on the condition survey, not on a single visible leak. Treating the symptom without resolving corrosion behind the joint can create a short-lived repair.

Structural movement and damaged internal supports

Tank stability depends on more than the visible wall panels. Internal ties, stays, cleats, columns and roof support arrangements all contribute to structural performance. Inspections may identify corroded stays, distorted members, loose connections or areas where previous repairs have not adequately restored strength.

These issues require careful engineering assessment. Structural components cannot be treated as simple cosmetic repairs, particularly where they support roof loads, resist water pressure or maintain panel alignment. The extent of repair may vary significantly between tank designs, materials and locations.

For example, isolated corrosion on a non-critical accessory may be manageable through planned maintenance. Widespread deterioration of stays, roof purlins or supporting members may require a more urgent refurbishment programme, potentially including replacement components and roof works. Access and safety arrangements must be considered throughout, especially where the tank remains operational on a live site.

Roof defects and water ingress

Although an internal inspection focuses on the tank interior, roof defects often reveal themselves from within. Daylight at joints, water staining, corrosion below roof penetrations, damaged insulation and deteriorated purlins can all indicate that the roof system is no longer protecting the stored water and structure effectively.

A compromised roof can introduce debris and rainwater, accelerate internal corrosion and contribute to sediment formation. It may also affect security and water quality. Where inspection findings point to roof deterioration, the repair strategy should consider the complete assembly rather than a temporary patch at the visible point of ingress.

Roof and purlin replacement can be a cost-effective part of a wider tank refurbishment, particularly where the shell remains serviceable but the upper structure has deteriorated. This approach can extend asset life without automatically committing the site to complete tank replacement.

Turning inspection findings into a practical repair plan

An inspection report should give the duty holder more than a list of observations. It should identify the condition of critical elements, explain the likely mechanism of deterioration and prioritise the required work according to risk. This is particularly valuable when budgets must be balanced against fire safety obligations and insurer expectations.

The most commercially sensible option is not always a full replacement. Many tanks can be returned to reliable service through a combination of local steel repairs, fibreglass remediation, bolt and joint works, coating, EPDM relining, roof replacement or improved access arrangements. Equally, refurbishment should not be used to postpone replacement where structural deterioration is too extensive for a dependable repair.

Planning also matters. A no-drain ROV inspection may help establish condition with minimal disruption, while a detailed internal refurbishment will usually need a carefully managed outage and alternative fire protection arrangements. The programme should be developed around the site's operational risk, sprinkler system requirements and the practical access available.

Nationwide Water Solutions Ltd approaches tank condition as a lifecycle issue: identify the defect accurately, repair what can be reliably repaired and recommend replacement only where it is genuinely justified. That gives asset owners a clearer basis for protecting both compliance and capital expenditure.

A well-timed internal inspection is one of the most effective ways to prevent a manageable defect becoming an emergency project. If the tank has not been assessed recently, or if there are signs of leakage, roof damage, corrosion or declining water quality, a specialist condition survey can provide the evidence needed to act with confidence.
